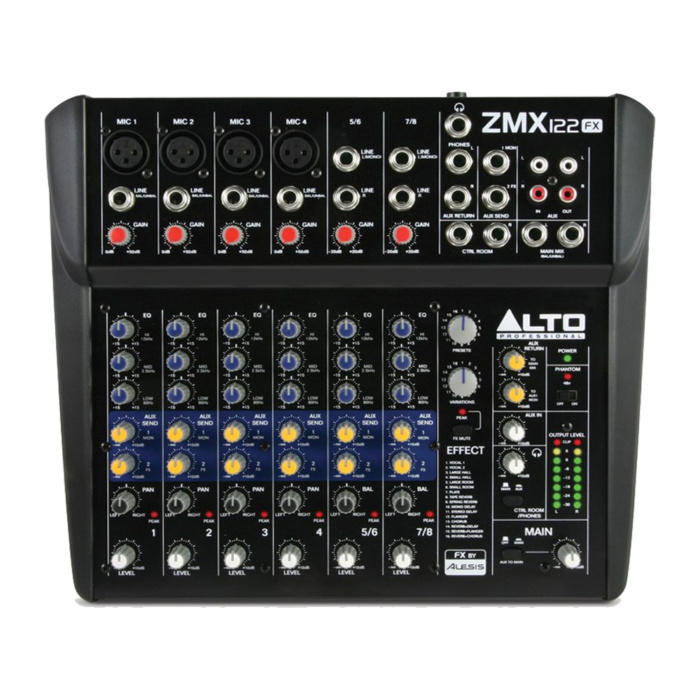

ანალოგური მიქშერი ALTO ZMX 122fx analog mixer

8

4

1x Stereo Master Output
1x Stereo Control Room/Monitor Output
1x Mono Aux Send Output
1x Mono FX Send Output
1x Stereo Tape/Record Output
1x Stereo Headphone Output

1x Main Mix
1x Aux Bus/Subgroup

Channel Meter:
6x Single LED
Main Meter:
2x 8-Segment LED

Mic Input:
0 dB to 50 dB
Line Input:
15 dBu to 35 dBu

High: ±12 dB at 12 kHz
Mid: ±12 dB at 2.5 kHz
Low: ±12 dB at 80 Hz

4x Reverb
Mono Delay
Stereo Delay
Chorus
Flanger
256x Preset (Factory)

AD/DA Conversion:
24-Bit

24-Bit

20 Hz to 22 kHz ±1 dB

0 dBu (Unbalanced)
+22 dBu (Unbalanced, Max)

Mic Input:
3.9 Kilohms
Line Input:
> 10 Kilohms
Aux Output:
1 Kilohms
Main Output:
120 Ohms

Adjacent Inputs:
< -80 dB at 1 kHz
Input to Output:
< -75 dB at 1 kHz

Bus Output:
< -90 dB (20 Hz to 22 kHz, Channel and Main Mix Levels at Unity, Others at Minimum, DSP Muted)

≥ 110 (dBu)

≤ 0.005% (+4 dBu, 1 kHz)

1x 1/4″ TS Footswitch Input
1x Stereo RCA Coaxial Input
2x 1/4″ Aux Return
2x 1/4″ TRS Stereo Input
4x XLR 3-Pin Balanced Mic Input
4x 1/4″ TRS Balanced Line Input

1x 1/4″ TRS Headphone Output
2x 1/4″ TRS Control Room Output (1 Stereo Pair)
2x 1/4″ TRS Control Room Output (1 Stereo Pair)
1x Stereo RCA Stereo Output
2x 1/4″ TRS Main Output

+48 V, Selectable On/Off (Applied to All Inputs)

18 VDC at 1500mA

27 W

No

10.1 x 9.8 x 2.8″ / 256 x 250 x 72 mm

5.1 lb / 2.3 kg

5.8 lb

15.4 x 12.7 x 5.8″
