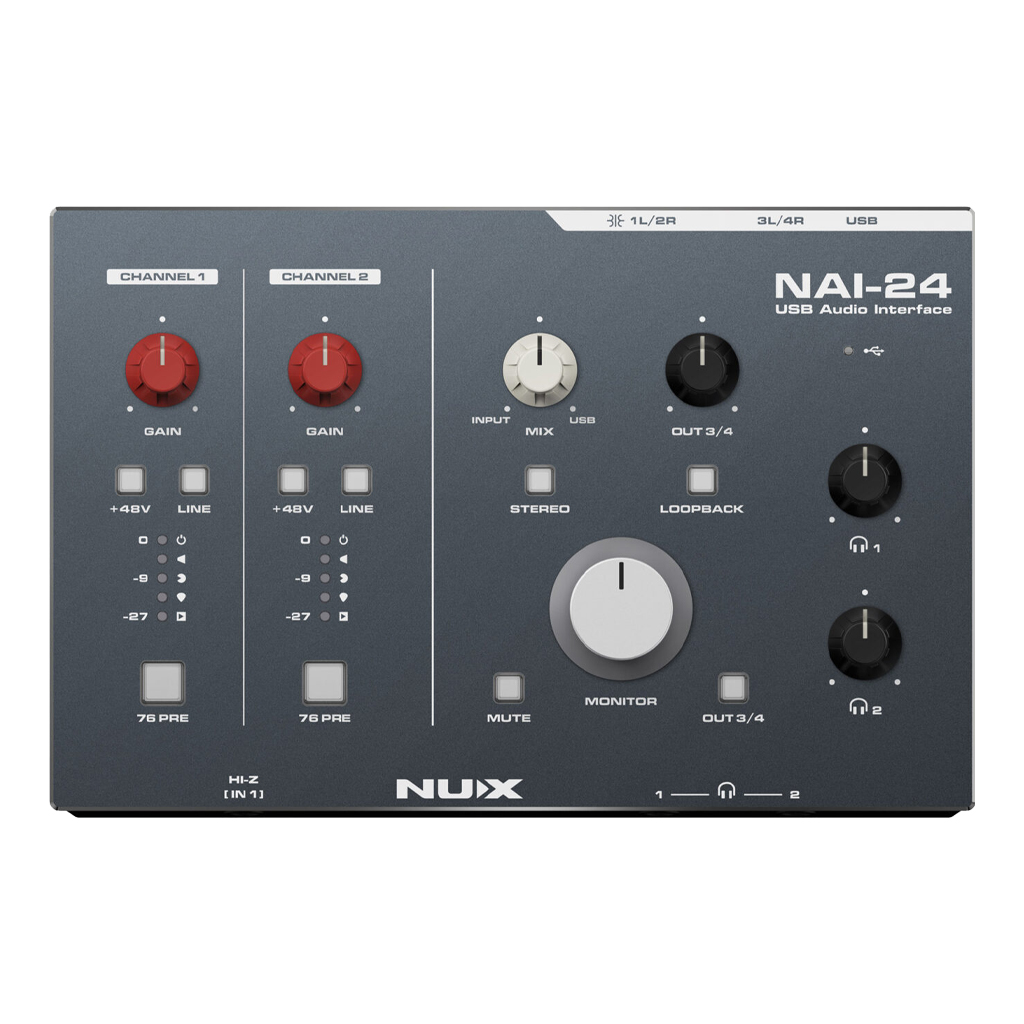

აუდიო ინტერფეისი NUX Audio Interface NAI-24

MIC IN

– Dynamic Range: 114dB(A-weighted)

– Frequency Response: 20-20000Hz ± 0.1dB

– THD+N: 0.002%@-1dBFS(at minimum gain)

– EIN: -126dB(A-weighted)

– Maximum Input Level: 6dBu(at minimum gain)

– Gain Range: 5.4-63dB

– Input lmpedance: 2.4kΩ

LINE IN

– Dynamic Range: 114dB(A-weighted)

– Frequency Response: 20-20000Hz ± 0.12dB

– THD+N：0.003%@-1dBFS (at minimum gain)

– Maximum Input Level: 26dBu (at minimum gain)

– Gain Range: -12.6-45dB

– Input lmpedance: 21kΩ

HI-Z

– Nominal input Level: -10dBu

– Input lmpedance: 1MΩ1

L/2R

– Dynamic Range: 112 dB(Balanced, 600 Ω.A-weighted)

– Frequency Response: 20-20000Hz ± 0.5dB

– Maximum Output Level: +12.4dBu(Balanced,0dBFS)

– THD+N: 0.0015%@-1dBFS

– Output lmpedance: 580Ω

3L/4R

– Dynamic Range: 112dB(Balanced, 200kΩ, A-weighted)

– Frequency Response: 20-20000Hz ± 0.1dB

– THD+N: 0.001%@-1dBFS

– Maximum OutputLevel: +18.4dBu(Balanced, 0dBFS)

– Output lmpedance: 240Ω

PHONES OUTPUT

– Dynamic Range: 104dB (A-weighted)

– Frequency Response: 20-20000Hz ± 0.25dB

– THD+N: 0.005%@-5dBFS

– Power Output: 30mW@32Ω

– Dimensions: 194(L)x128(W)x67(H)mm

– Weight: 722g
