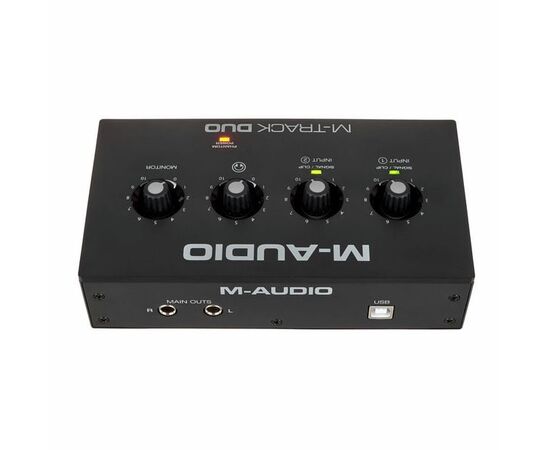

აუდიო ინტერფეისი MTRACKDUO – 2-in 2-out USB Audio interface

FEATURES

• 2-Channel USB recording interface for Mac and PC
• (2) Combo inputs with Crystal Preamps amazing audio quality
• Dedicated switches to enable any microphone, instrument, or line level device
• +48V phantom power for connecting studio condenser microphones
• Stereo 1/4” outs; 1/4” headphone out with independent level controls
• USB/Direct Mono/Direct Stereo switch for monitoring mic, line or instrument inputs in stereo or mono
• Included – Pro Tools | First M-Audio Edition, MPC Beats, AIR Music Tech Xpand! 2, Eleven Light guitar amp plugins and 20 Avid effects

SPECIFICATIONS

• Mic Input Frequency Response    20 Hz – 20 kHz (+0.1 dB)
• Mic Input Signal-to-Noise Ratio    109 dB (A-weighted)
• Mic Input THD+N    0.003% (min. gain, 0 dBu out, A-weighted)
• Mic Input Preamp EIN    -128 dBu (max. gain, 40 Ω source, A-weighted)
• Mic Input Gain Range    Direct Mono: 0 dB to +54 dB Direct Stereo: 6 dB to +60 dB
• Line Input Frequency Response    20 Hz – 20 kHz (+0.1 dB)
• Line Input Sensitivity    -43 dBu
• Line Input THD    0.002% (min. gain, 0 dBu out, A-weighted)
• Line Input Gain Range    Direct Mono: -10 dB to +44 dB Direct Stereo: -4 dB to +50 dB
• Instrument Input Frequency Range    20 Hz – 20 kHz (+0.1 dB)
• Instrument Input THD+N    0.005% (min. gain, 0 dBu out, A-weighted)
• Instrument Input Impedance    1 MΩ
• Instrument Input Gain Range    Direct Mono: -10 dB to +44 dB Direct Stereo: -4 dB to +50 dB
• Main Outputs Frequency Range    20 Hz – 20 kHz (+0.1 dB)
• Mainb Outputs Signal-to-Noise Ratio    109 dB (A-weighted)
• Main Outputs THD    0.002% (0 dBu out, A-weighted)
• Main Output Max Output Level    +4 dBu
• Headphone Output Power    60 mW/Ch, 32 Ω
• Headphone Output Frequency Response    20 Hz – 20 kHz (+0.5 dB)
• Headphone Output THD+N    0.02% (A-weighted)
• Headphone Output Signal-to-Noise Ratio    100 dB (A-weighted)
• Includes    M-Track Duo, USB B to USB A Cable, Software Download Cards, User Guide, Safety & Warranty Manual
