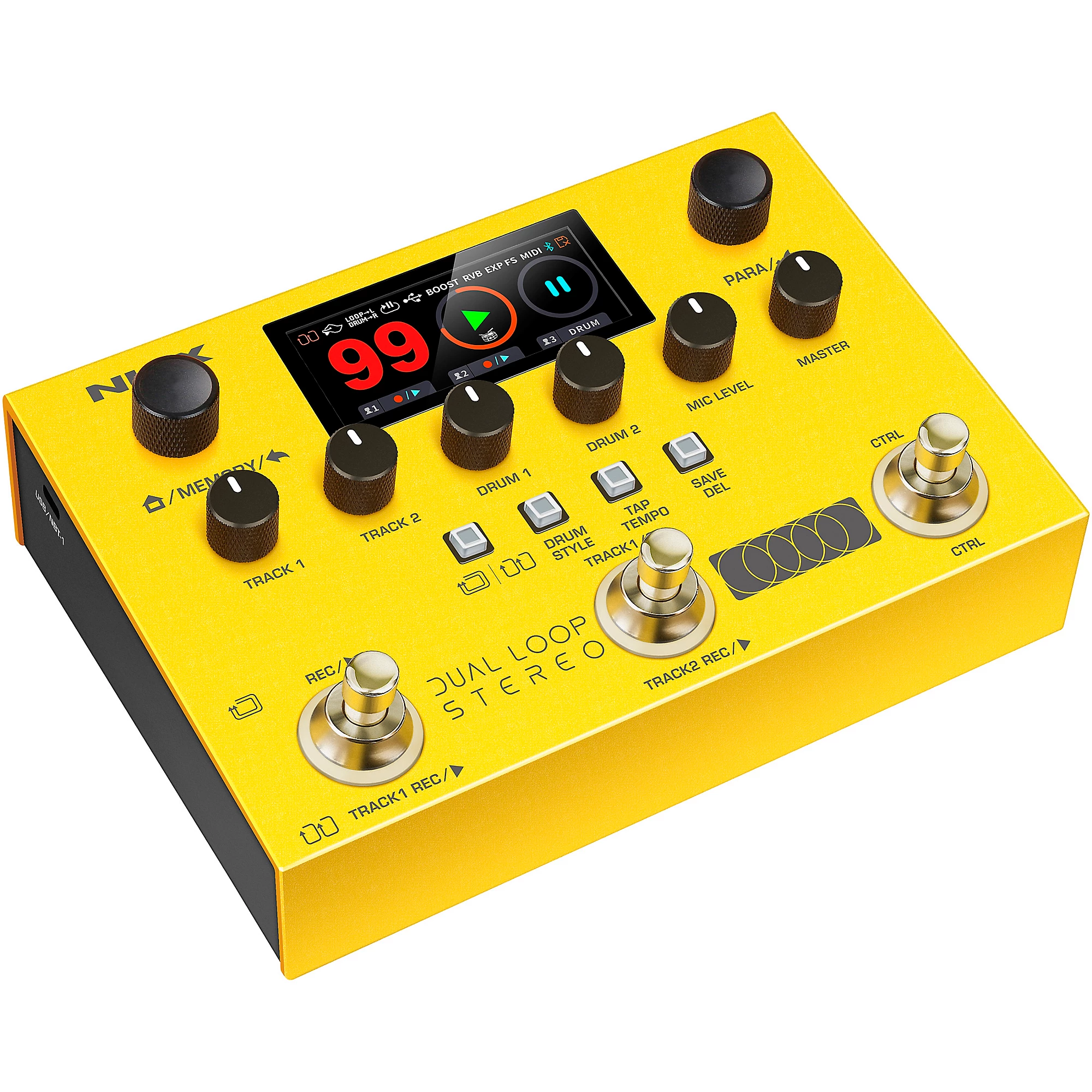

NUX Dual Loop Stereo NMA-3DLS

– Sampling Frequency: 44.1 kHz

– AD/DA Conversion: 32 bits

– Processing: 32-bit floating point

– Recording/Playback:

Number of Tracks: 2

Data Format: WAV (44.1 kHz, 32-bit float, stereo)

Approx. 1.5 hours (1 track), Approx. 26 hours (total of all memories)

Rhythm Type: 42 groups, 672 patterns

Effect: Octave, Booster, Amp Simulation, Reverb (for drum or mic/instrument of input 1)

Memory: 99

– Maximum Input Level:

MIC IN: +6 dBu (with minimum mic gain)

INPUT 1/2: +8 dBu

AUX IN L/R: +8 dBu

Mic Input Gain Range: 5.4 dB – 63 dB

– Input Impedance:

MIC IN: 2.4 kΩ

INPUT 1/2: 1 MΩ

AUX IN L/R: 1 MΩ

– Output Impedance:

OUTPUT L/R: 1 kΩ

PHONES L/R: 3.3 Ω

Bypass: Buffered bypass

Display: 2.86″ Colored LCD display, 960 x 376 pixels

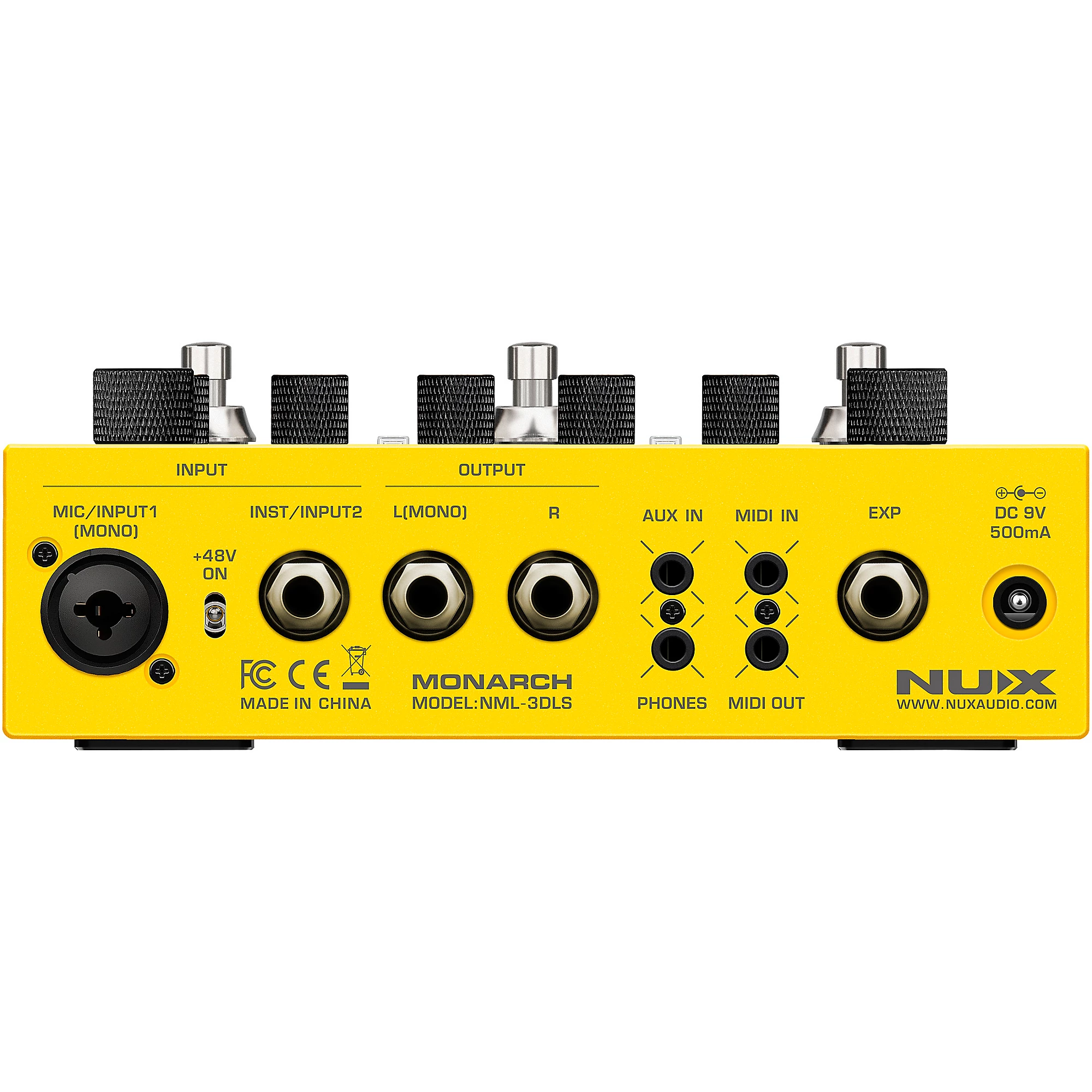

– Connectors:

MIC/INPUT 1: Combined XLR & 1/4 – inch type jack (balanced, phantom power: DC 48 V)

INST/INPUT 2: 1/4 – inch phone type jack

OUTPUT L (MONO): 1/4 – inch phone type jack

OUTPUT R: 1/4-inch phone type jack

AUX IN: 1/8-inch stereo miniature type jack

PHONES: 1/8-inch stereo miniature type jack

MIDl (IN, OUT) jacks: 1/8-inch stereo miniature type jacks

EXP jack: 1/4-inch TRS phone type

DC IN jack

USB port: USB-C type

– Power Supply: ACD-006 (9 V 500 mA)

– Current Draw:

Less than 170 mA (Phantom power off)

Less than 270 mA (Phantom power on)

– Dimensions: 183 (L) x 130 (W) x 65.3 (H) mm

– Weight: 765 g
